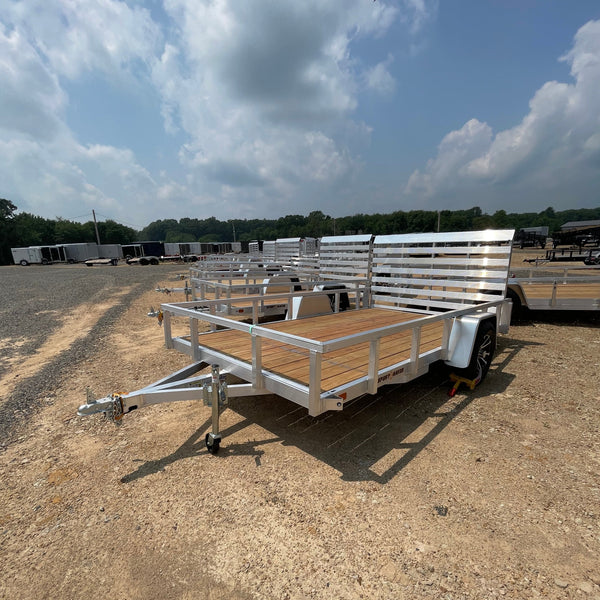

SPORT HAVEN 7X12 AUT

STANDARD Features:

• NATM Certified
• Extruded Aluminum Tube Frame: Durable, Lightweight
• A-Frame Tongue for Superior Support
• 3-Year Structural Warranty
• Welded on Bridge Sides for More Strength and Safety of Cargo
• 1750 lb Capacity Bolt on Ramp
• LED Lighting
• Sealed Plug and Play Wiring Harness
• 15” Radial Tire
• Dexter 3,500 lb. 4” Drop Spring Axles
• 1,000 lb. Swivel Jack w/wheel
• 5/4”x 6" Pro Wood Dura Color Treated Decking
• Rear, Removeable 3-position Ramp
• Spring Loaded Gate Latch
• Aluminum Through-Bolted Greaseable Hinge
• 4 Tie-Down Points (6 on tandems)

OPTIONAL Features:

• Side Loading Ramp (5' wide)
• Bi-Fold Ramp (Rear and/or Side)
• Trailer Brakes
• Spare Tire-Mount (Weld-on or Bolt-on)
• Matching Spare Tire
• Aluminum Rim Upgrade
• Flush Mount D-rings

SPECIFICATIONS
Deck (Length/Width)	144" / 83"
Overall (Length/Width)	195" / 102"
Crossmembers	24" On-Center
Frame	2" x 4" Tube
Decking	5/4" x 6" Treated
Deck Height	17"
Rail Height (above deck)	13"
ATP Side Walls	Optional
Rear Ramp	4' Standard
Suspension	Double Eye Spring
Axle(s) (Qty/Rating)	(1) 3,500 lb. idler
Wheels	15" Silver Spoke
Tires	ST205/75R15 C Radial
GVWR	2,990 lb.
Curb Weight	800 lb.
Payload Capacity	2,190 lb.
CouplerRating / Ball Size	3,200 lb. / 2" Ball
Hitch Height	14"
Power Connection	4-Way Flat
Lights	LED
Wheel Jack	Standard
Safety Chains	3,200 lb. / 24"
