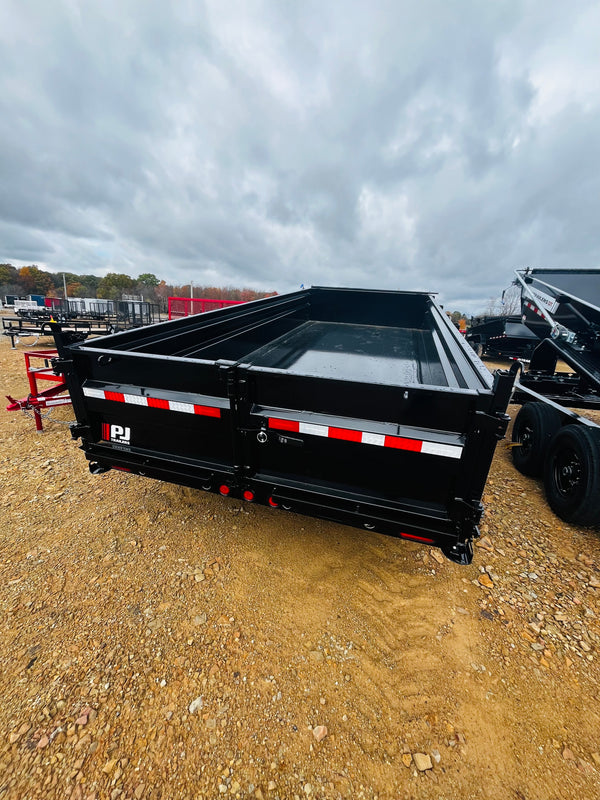

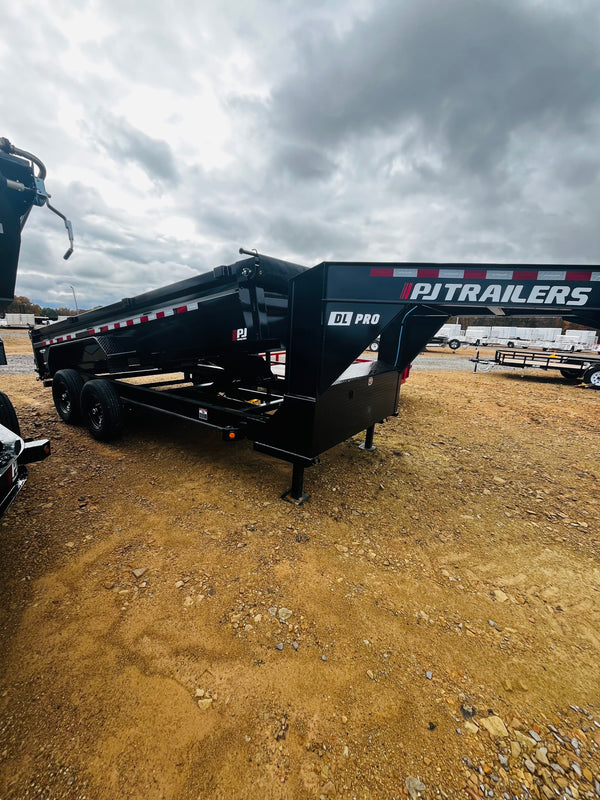

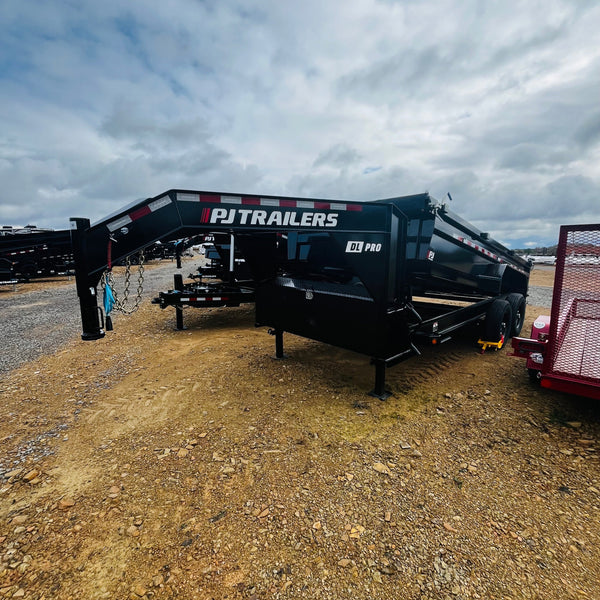

2026 PJ DL 7X16 GOOSENECK LOW SIDED DUMP 15K GVWR

2026 PJ DL 7X16 GOOSENECK LOW SIDED DUMP 15K GVWR
2026 PJ DL 7X16 GOOSENECK LOW SIDED DUMP 15K GVWR
2026 PJ DL 7X16 GOOSENECK LOW SIDED DUMP 15K GVWR
2026 PJ DL 7X16 GOOSENECK LOW SIDED DUMP 15K GVWR
Load image into Gallery viewer, 2026 PJ DL 7X16 GOOSENECK LOW SIDED DUMP 15K GVWR
Load image into Gallery viewer, 2026 PJ DL 7X16 GOOSENECK LOW SIDED DUMP 15K GVWR
Load image into Gallery viewer, 2026 PJ DL 7X16 GOOSENECK LOW SIDED DUMP 15K GVWR
Load image into Gallery viewer, 2026 PJ DL 7X16 GOOSENECK LOW SIDED DUMP 15K GVWR

Regular price $12,500.00

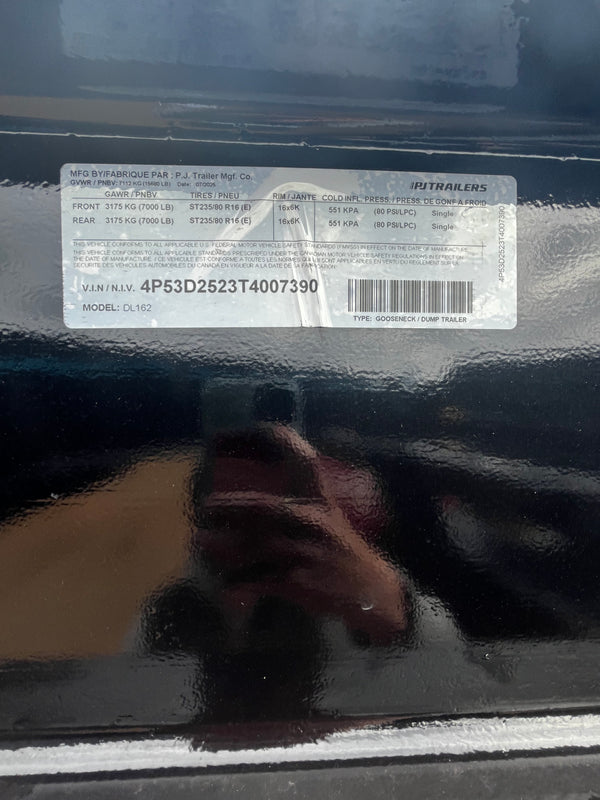

VIN #: 4P53d2523T4007390



AVAILABLE AT: CORSICA, PA
Trailer Specs
Dimensions
Lengths 16'
Bed Width 83"
Bed Height 28"
Weight Ratings
GVWR 15680 lbs.
GAWR 7,000 lb. x (2) G.A.W.R.

Finish
Type Powdercoat
Prep Acid Wash, Sandblast
Colors Black, Desert Tan, Grey, Red, Tractor Orange, White
Warranty
Axle Warranty 5-Year Axle Warranty
Trailer Warranty Three (3) Year Frame/One (1) Year Limited Warranty

Tongue
Coupler
Standard Coupler GN
Jacks
Front Jack Drop Leg Jack (12,000 lb.)
Front Jack GN Option Equipped with (2) Jacks
Toolbox
Toolbox Lockable Toolbox (Houses Battery and Pump)
Toolbox Gooseneck GN Option Equipped w/Lockable Front Toolbox

Tongue
Type 8" x 10 lb. Formed I-beam Tongue
Length
(Bumper Pull)		 4' 10" (58")
Length
(Gooseneck)		 9' 2" (110")
Safety System
Breakaway System Defender 2 Electric Breakaway System w/ Charger
Reflective Tape 3M Dot Compliant Reflective Tape

Chassis
Deck
Flooring 10ga. Steel Bed
D-rings (4) D-Rings (Welded inside the Box)
Side
Step Ultra-Wide Monster Step
Stake Pockets (10) 3-5/8" x 1-1/2" (ID) Stake Pockets
Fenders 1/8" Treadplate Steel Fenders

Frame
Type Formed I-Beam Main Frame
Size 8" x 10 lb.
Crossmembers
Size 3"
Type Channel
Spacing 16"
Rear
Ramps 6' 6" Slide-In Channel Ramps

Running Gear
Tires
Type Radial Tires
Size ST235/80R16
Ply 10 ply
Rating 3,520 lbs.
Rims 16" Black Mod Wheels
Spare Tire Spare Tire Mount

Suspension
Axle Type Spring
Axle Count 2
Axle Rating 7,000 lb.
Brakes Electric
Suspension Type 6-Leaf Slipper Spring Suspension
Axle Warranty 5-Year Axle Warranty

Electrical & Lighting
Battery & Charging
Battery Interstate (TM) Deep Cycle Battery
Charging System 110V Integrated Trickle Charger
Wiring Harness All-Weather Wiring Harness (7-way RV)
Frame Wiring Double Insulated Wiring Harness

Lighting
Side Markers Sealed Lightbox with DOT Approved Flushmount Lifetime LED Lights
Rear Lights DOT Approved Flushmount Lifetime LED Lights

Lift System
Hydraulics
System Hydraulic - Power Up / Down
Pump 12V Hydraulic Pump
Controller 12' Control Cable

Lift Platform
Cylinder 5" x 17" Cylinder w/Scissor & 5" x 21" on 16'
Type Scissor Lift

Dump
Bed
Inside Width 83"
Height 28"
Thickness 10ga.
Angle 40°
Cargo Capacity 6.15 - 16.4 yd3
Rear
Gate 2-Way Gate (Barn Doors & Spreader Gate)

Sides
Height 24"
Thickness 10ga.
Type UniWall Steel Sides
Supports Uniwall Construction (Top Rail, Side, and Bed as one-piece)
Saftey
Tarp Roll-up Tarp Kit (Pull Bar) 7' x 20'
