2024 SPORT HAVEN 5X10 AUT
Regular price
$2,950.00
Sale price
$3,100.00

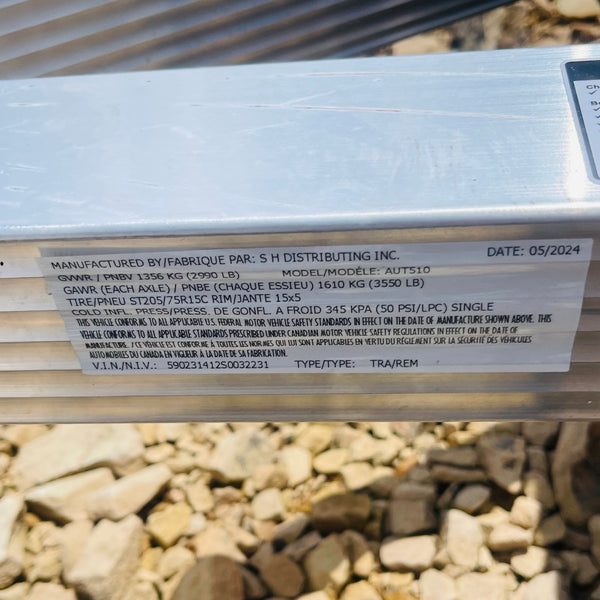

VIN #: 590231412s0032231
AVAILALE AT: CORSICA, PA
STANDARD FEATURES
- W/ Aluminum Wheels
- NATM Certified
- Extruded Aluminum Tube Frame: Durable, Lightweight
- Wishbone Tongue for Superior Support
- 3-Year Structural Warranty
- LED Lighting
- Sealed Plug and Play Wiring Harness
- 15” Steel Wheel with Radial Tire
- Dexter 3,500 lb. 4” Drop Spring Axles
- 1,000 lb. Swivel Jack w/wheel
- Treated Wood Decking
- Rear, Removeable 2-position Ramp
- Spring Loaded Gate Latch
- Aluminum Through-Bolted Greaseable Hinge
- 3 Tie-Down Points
| SPECIFICATIONS | |
|---|---|
| Deck (Length/Width) | 120" / 60" |
| Overall (Length/Width) | 162" / 78" |
| Crossmembers | 24" On-Center |
| Frame | 3" Tube |
| Decking | Treated Wood |
| Deck Height | 17" |
| Rail Height (above deck) | 13" |
| ATP Side Walls | Optional |
| Rear Ramp | 4' Standard |
| Suspension | Double Eye Spring |
| Axle(s) (Qty/Rating) | (1) 3,500 lb. idler |
| Wheels | 15" Steel |
| Tires | ST205/75R 15 C Radial |
| GVWR | 2,990 lb. |
| Curb Weight | 500 lb. |
| Payload Capacity | 2,490 lb. |
| Coupler Rating / Ball Size | 3,200 lb. / 2" Ball |
| Hitch Height | 14" |
| Power Connection | 4-Way Flat |
| Lights | LED |
| Wheel Jack | Standard |
| Safety Chains | 3,200 lb. / 24" |
